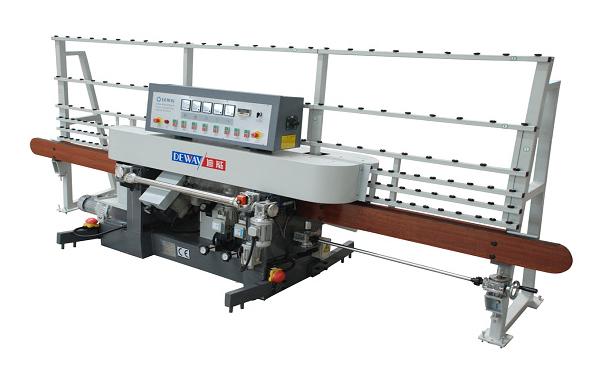

The machine for processing rectilinear glass edges "DZM 4"

Manufacturer:"DEWAY", China Using this machine straight-line edging glass automatically creates a chamfer with an angle of 45*. The equipment can be used on glass and furniture enterprises, in the construction industry. Distinctive features: Polishing takes place on a massive base that absorbs well vibrations. Reuse the spent coolant. Uniform movement of the work material due to the flexible flat conveyor. When the straight-line edging glass, the speed of movement of the material can be adjusted manually. The design of the machine allows for quality work with thick and thin lenses. Clear maintaining the geometry of the edges of the glass. During polishing glass edges are activated, the load counters for every working shaft. Drives to the glass are fed manually. Number of spindles 4 PCs Glass thickness 3-10 mm Minimum glass size 120*120 mm The angle of chamfer 45* The width of the chamfer 3 mm Conveyor height 750 mm Working speed 1-5 m/min Power 9 kW Dimensions 4800*1200*1800 mm Weight 1600 kg
